Extend the MDG Business Partner – Node Extension (Reuse Option)

So, here we are going to add a new entity to the company code data level, as shown in the above figure.

Steps:-

Extension of S4 API Structures

To get the API structures, we need to go to the standard BP handler class.

In Below structure, we need to add our own API structure.
Class ‘CL_MDG_BS_ECC_HANDLER’.
Table Type ‘MDG_BS_BP_TT_ECC_EXTERN’.

Data Dictionary Object Creation

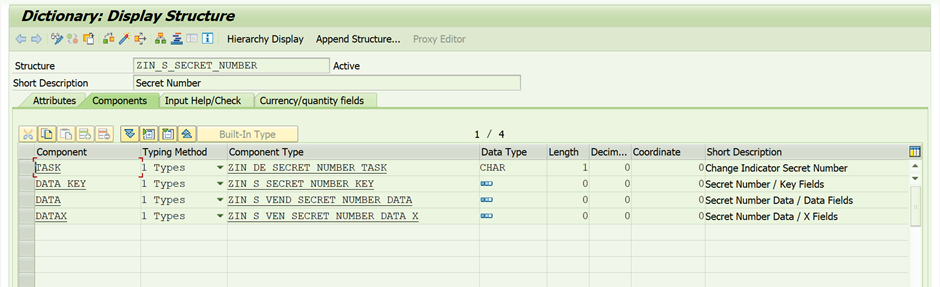

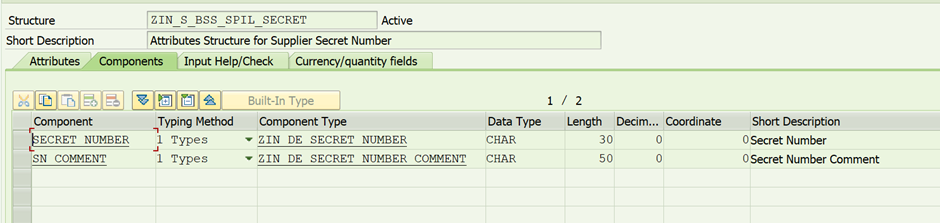

Structures

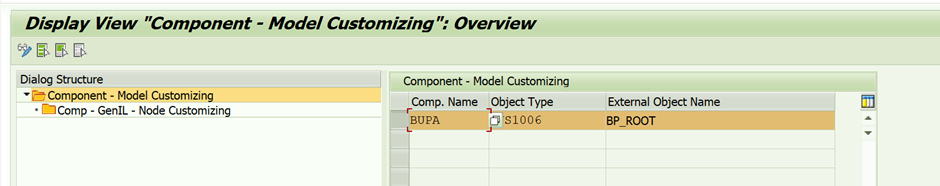

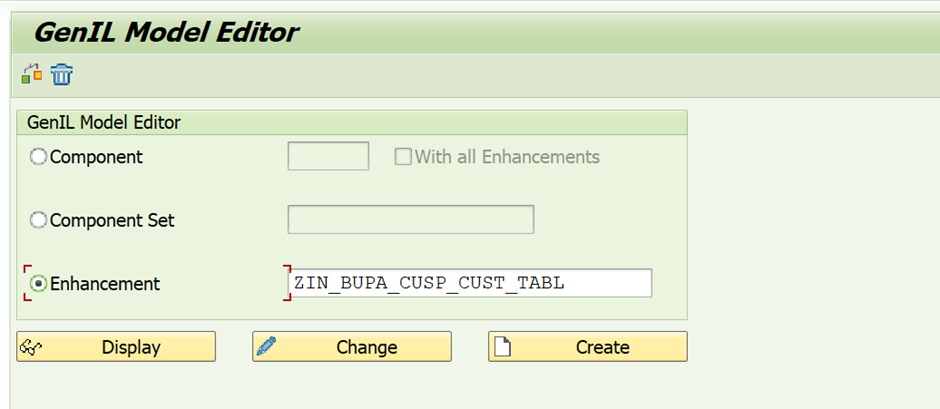

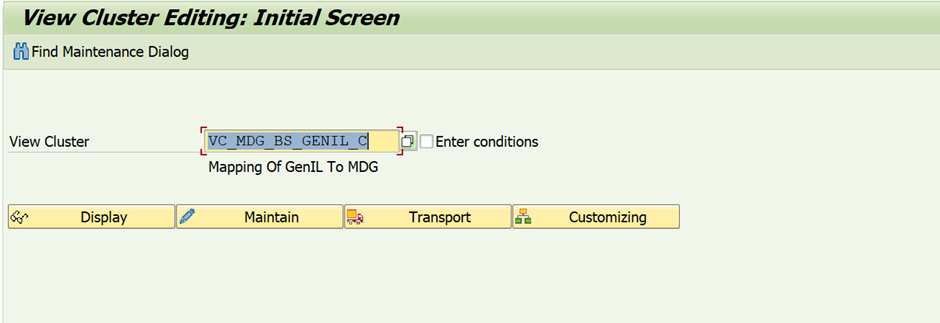

For Genil model extensions:

Creation of Table to store this Secret number data in backend active table

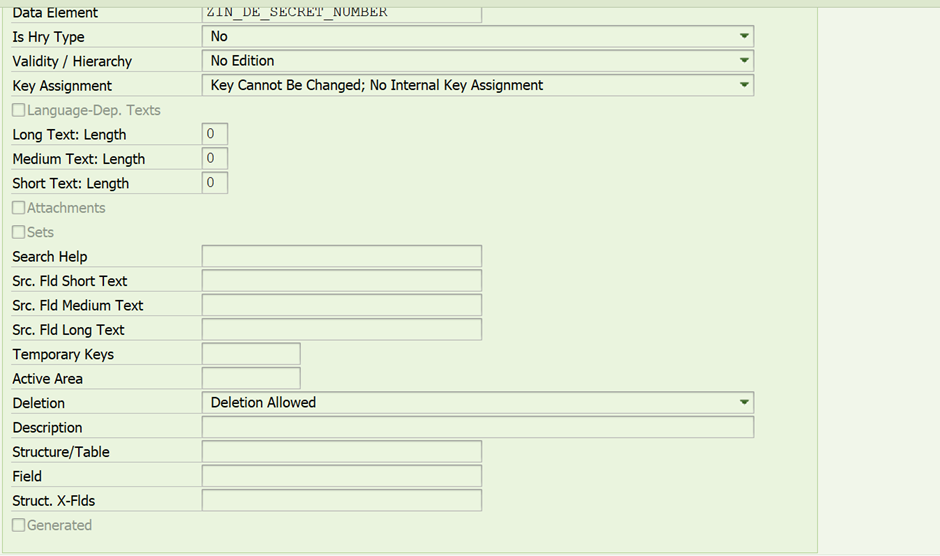

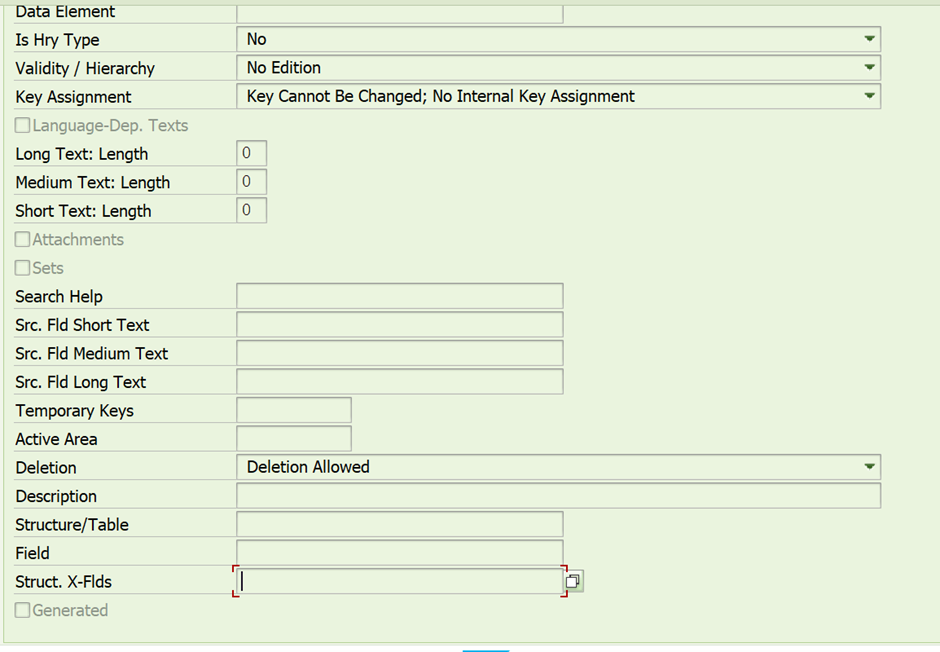

Extension of BP data model with new Entity

Generate Data Model specific structures

Create and Implement BP Handler Class

Below methods we need to re-define

GET_OBJECT_DATA_BY_ENTITY

SORT_ENTITIES

MAP_DATA_2API

MAP_DATA_2STA

PREPARE_EI_HEADER_MAP_2API

READ_OBJECT_DATA

SAVE_ADDITIONAL_OBJECT_DATA

CONSTRUCTOR

Below methods we have created newly

READ_VENDOR_BY_LIFNR

READ_VENDOR

MAP_BP_ZSECRET_N_2API

MAP_BP_ZSECRET_N_2STA

CONSTRUCTOR

METHOD constructor.

super->constructor( ).
me->gv_wf_services = cl_mdg_bs_suppl_wf_services=>get_instance( ).

go_mlt_as_api = cl_mdg_bs_bp_mlt_assgnmnt_api=>get_instance( ).
ENDMETHOD.

READ_VENDOR_BY_LIFNR

  METHOD read_vendor_by_lifnr.
    DATA:
      ls_vmds_ei_main    TYPE vmds_ei_main,
      ls_vmds_ei_extern  TYPE vmds_ei_extern,
      ls_vmds_ei_main_in TYPE vmds_ei_main,
      ls_cvis_extern     TYPE cvis_ei_extern,
      lv_partner_guid    TYPE bu_partner_guid.

    FIELD-SYMBOLS:
                   <ls_idlist> TYPE bus_ei_instance.

    IF iv_lifnr IS NOT INITIAL.
      ls_vmds_ei_extern-header-object_task = 'M'.
      ls_vmds_ei_extern-header-object_instance-lifnr = iv_lifnr.
      APPEND ls_vmds_ei_extern TO ls_vmds_ei_main_in-vendors.
    ENDIF.

    IF NOT ls_vmds_ei_main_in IS INITIAL.
* Extract Vendors
      vmd_ei_api_extract=>get_data(
                            EXPORTING
                              is_master_data = ls_vmds_ei_main_in
                            IMPORTING
                              es_master_data = ls_vmds_ei_main
                            EXCEPTIONS
                              OTHERS = 1 ).

      LOOP AT ls_vmds_ei_main-vendors INTO DATA(ls_vendors). "only one entry expected
        es_supplier-vendor = ls_vendors.
        EXIT.
      ENDLOOP.
    ENDIF.

  ENDMETHOD.

READ_VENDOR

  METHOD read_vendor.
    DATA:
      lo_ka_bp_vendor    TYPE REF TO cvi_ka_bp_vendor,
      ls_bp_suppl_link   TYPE ty_bp_suppl_link,
      ls_vmds_ei_main    TYPE vmds_ei_main,
      ls_vmds_ei_extern  TYPE vmds_ei_extern,
      ls_vmds_ei_main_in TYPE vmds_ei_main,
      ls_cvis_extern     TYPE cvis_ei_extern,
      lv_partner_guid    TYPE bu_partner_guid.
    FIELD-SYMBOLS:
    <ls_idlist> TYPE bus_ei_instance.
* Read Connection Between Vendor and Business Partner
    lo_ka_bp_vendor = cvi_ka_bp_vendor=>get_instance( ).
    LOOP AT it_idlist ASSIGNING <ls_idlist>.
* existenz in globaler Tabelle noch prüfen
      ls_bp_suppl_link-bpartner = <ls_idlist>-bpartner.
      lv_partner_guid = <ls_idlist>-bpartnerguid.
      IF lv_partner_guid IS INITIAL.
        CALL FUNCTION 'BUPA_NUMBERS_GET'
          EXPORTING
            iv_partner      = ls_bp_suppl_link-bpartner
          IMPORTING
            ev_partner_guid = lv_partner_guid.
      ENDIF.
      lo_ka_bp_vendor->get_assigned_vendor_for_bp(
                           EXPORTING
                             i_partner = lv_partner_guid
                           RECEIVING
                             r_vendor = ls_bp_suppl_link-supplier
                           EXCEPTIONS
                             OTHERS = 1 ).

      IF sy-subrc = 0 AND ls_bp_suppl_link-supplier IS NOT INITIAL.
        APPEND ls_bp_suppl_link TO gt_bp_suppl_link.
        ls_vmds_ei_extern-header-object_task = 'M'.
        ls_vmds_ei_extern-header-object_instance-lifnr = ls_bp_suppl_link-supplier.
        APPEND ls_vmds_ei_extern TO ls_vmds_ei_main_in-vendors.
        CLEAR: ls_vmds_ei_extern.
      ENDIF.
    ENDLOOP.

    IF NOT ls_vmds_ei_main_in IS INITIAL.
* Extract Vendors
      vmd_ei_api_extract=>get_data(
                            EXPORTING
                              is_master_data = ls_vmds_ei_main_in
                            IMPORTING
                              es_master_data = ls_vmds_ei_main
                            EXCEPTIONS
                              OTHERS = 1 ).

      LOOP AT it_idlist ASSIGNING <ls_idlist>.
        ls_cvis_extern-partner-header-object_instance-bpartner = <ls_idlist>-bpartner.
        CLEAR ls_cvis_extern-vendor.
* Vendor
        READ TABLE gt_bp_suppl_link
                      INTO ls_bp_suppl_link
                      WITH KEY bpartner = <ls_idlist>-bpartner.
        IF sy-subrc = 0.

          READ TABLE ls_vmds_ei_main-vendors
                     INTO ls_vmds_ei_extern
                     WITH KEY header-object_instance-lifnr = ls_bp_suppl_link-supplier.

          IF sy-subrc = 0.
            ls_cvis_extern-vendor = ls_vmds_ei_extern.
          ENDIF.
        ENDIF.
        APPEND ls_cvis_extern TO et_supplier.
      ENDLOOP.
    ENDIF.
  ENDMETHOD.

MAP_BP_ZSECRET_N_2API

  METHOD map_bp_zsecret_n_2api.

    DATA: lv_dummy   TYPE string,
          ls_secret  TYPE zxx_s_bp_pp_secret_n,             "#EC NEEDED
          ls_dunn_x  TYPE mdg_bs_suppl_bp_dunn_x,
          ls_target  TYPE zin_s_secret_number,
          ls_comp    TYPE vmds_ei_company,
          ls_comp_db TYPE vmds_ei_company.

    FIELD-SYMBOLS:
      <ls_data_x>         TYPE any,
      <ls_comp>           TYPE vmds_ei_company,
      <lv_assgnm_id>      TYPE mdg_bp_assignment_id,
      <lv_partner>        TYPE bu_partner,
      <ls_ecc_extern_db>  TYPE mdg_bs_bp_s_ecc_extern,
      <ls_cvis_ei_extern> TYPE cvis_ei_extern,
      <ls_vendors>        TYPE mdg_bs_bp_s_mlt_as_suppl,
      <ls_vendor>         TYPE vmds_ei_extern.
    MOVE-CORRESPONDING is_data TO ls_secret.
* Company Data key
    READ TABLE cs_suppl-vendor-company_data-company WITH KEY data_key-bukrs = ls_secret-company ASSIGNING <ls_comp>.
    IF <ls_comp> IS NOT ASSIGNED.
* create entry as entities bp_compny and bp_dunn may map to the same target record as dunning data are company dependent
* CAUTION if no inactive changes for the company code exist: check if company data for the relevant
*comp. code is saved. If DB data exists, the company code data must be insertedas well as otherwise
* check would determine initial company code data when checking entity BP_COMPNY
      ls_comp-data_key-bukrs = ls_secret-company.
      ls_comp-task = gc_upd. "if insert of entity comes later on task is overwritten
* check if comp. code is saved
      ASSIGN COMPONENT 'BP_HEADER' OF STRUCTURE is_data TO <lv_partner>.
      IF sy-subrc = 0.
        IF <lv_partner> IS NOT INITIAL.
          ASSIGN COMPONENT 'ASSGNM_ID' OF STRUCTURE is_data TO <lv_assgnm_id>.
          IF sy-subrc = 0.
            IF <lv_assgnm_id> IS NOT INITIAL.
              READ TABLE gt_ecc_extern_db ASSIGNING <ls_ecc_extern_db>
                                          WITH KEY partner-header-object_instance-bpartner = <lv_partner>.
              IF sy-subrc = 0.
                READ TABLE <ls_ecc_extern_db>-vendors ASSIGNING <ls_vendors>
                                                      WITH KEY assignment_id = <lv_assgnm_id>.
                IF sy-subrc = 0.
                  READ TABLE <ls_vendors>-vendor-company_data-company INTO ls_comp_db
                                            WITH KEY data_key-bukrs = ls_secret-company.

                  IF sy-subrc = 0.
                    ls_comp-data = ls_comp_db-data.
                  ENDIF.
                ENDIF.
              ENDIF.
            ENDIF.
          ENDIF.
        ENDIF.
      ENDIF.
      INSERT ls_comp INTO TABLE cs_suppl-vendor-company_data-company ASSIGNING <ls_comp>.
    ENDIF.
* Secret Number Data Key
    ls_target-data_key-secret_number = ls_secret-zsecret.
* Secret Number Data
    IF iv_task = gc_ins OR iv_task = gc_upd.
      ls_target-data-sn_comment = ls_secret-sncomment .
    ENDIF.
    ls_target-task = iv_task.
    APPEND ls_target TO <ls_comp>-zsecret_number-zsecret_number.
    cv_xchange = abap_true.

  ENDMETHOD.

MAP_BP_ZSECRET_N_2STA

  METHOD map_bp_zsecret_n_2sta.

    FIELD-SYMBOLS: <ls_extern_db>     LIKE LINE OF gt_ecc_extern_db,
                   <ls_vendor>        TYPE mdg_bs_bp_s_mlt_as_suppl,
                   <ls_company>       TYPE LINE OF vmds_ei_company_t,
                   <ls_secret_number> TYPE zin_s_secret_number,
                   <lv_bp_header>     TYPE bu_partner,
                   <lv_company>       TYPE bukrs,
                   <lv_secret_number> TYPE zin_de_secret_number,
                   <lv_comment>       TYPE zin_de_secret_number_comment.

    DATA: lr_data  TYPE REF TO data,
          lv_dummy TYPE string.

    FIELD-SYMBOLS:
      <ls_data>   TYPE data,
      <ls_comp>   TYPE vmds_ei_company,
      <ls_secret> TYPE zin_s_secret_number,
      <lv_as_id>  TYPE mdg_bp_assignment_id.

    LOOP AT gt_ecc_extern_db ASSIGNING <ls_extern_db>.
      LOOP AT <ls_extern_db>-vendors ASSIGNING <ls_vendor>.
        LOOP AT <ls_vendor>-vendor-company_data-company ASSIGNING <ls_company>.
          LOOP AT <ls_company>-zsecret_number-zsecret_number ASSIGNING <ls_secret>.
            CREATE DATA lr_data LIKE LINE OF ct_data.
            ASSIGN lr_data->* TO <ls_data>.

            ASSIGN COMPONENT:
            'BP_HEADER' OF STRUCTURE <ls_data> TO <lv_bp_header>,
            'COMPANY' OF STRUCTURE <ls_data> TO <lv_company>,
            'ZSECRET' OF STRUCTURE <ls_data> TO <lv_secret_number>,
            'SNCOMMENT' OF STRUCTURE <ls_data> TO <lv_comment>,
            'ASSGNM_ID' OF STRUCTURE <ls_data> TO <lv_as_id>.

            <lv_as_id>  = <ls_vendor>-assignment_id.
            <lv_bp_header> = <ls_extern_db>-partner-header-object_instance-bpartner.
            <lv_company> = <ls_company>-data_key-bukrs.
            <lv_secret_number> = <ls_secret>-data_key-secret_number.
            <lv_comment> = <ls_secret>-data-sn_comment.
            INSERT <ls_data> INTO TABLE ct_data.
          ENDLOOP.
        ENDLOOP.
        ENDLOOP.
        ENDLOOP.

      ENDMETHOD.

GET_OBJECT_DATA_BY_ENTITY

METHOD if_mdg_bs_bp_access_handler~get_object_data_by_entity.

    CASE iv_entity.
      WHEN 'ZSECRET_N'.
        FIELD-SYMBOLS: <ls_secret_num> TYPE zin_t_secret_num.
        DATA: lo_line TYPE REF TO data.
        SELECT SINGLE * FROM zin_t_secret_num INTO @DATA(ls_secret_num) WHERE lifnr = @iv_partner.
        CREATE DATA lo_line TYPE zin_t_secret_num.
        ASSIGN lo_line->* TO <ls_secret_num>.
        <ls_secret_num> = ls_secret_num.
        er_data = lo_line.
    ENDCASE.
  ENDMETHOD.

MAP_DATA_2API

METHOD if_mdg_bs_bp_access_handler~map_data_2api.

  DATA: ls_cvi_ei_extern TYPE cvis_ei_extern.
* ls_suppl_ext TYPE mdg_bs_bp_s_mlt_as_suppl .
  FIELD-SYMBOLS:
    <lt_mlt_as>    TYPE mdg_bs_bp_tt_mlt_as,
    <ls_mlt_as>    TYPE mdg_bs_bp_s_mlt_as,
    <lt_data>      TYPE mdg_bs_bp_tt_mlt_as_suppl,
    <ls_data>      TYPE vmds_ei_extern,
    <ls_ext_suppl> TYPE vmds_ei_extern,
    <ls_bp_header> TYPE bus_ei_extern,
    <ls_as_id>     TYPE mdg_bp_assignment_id,
    <ls_ext_as_id> TYPE mdg_bp_assignment_id,
    <ls_suppl>     TYPE mdg_bs_bp_s_mlt_as_suppl. " vmds_ei_extern.
  ASSIGN COMPONENT 'ASSGNM_ID' OF STRUCTURE is_data TO <ls_as_id>.
  ASSIGN COMPONENT 'VENDOR' OF STRUCTURE cs_data_ext TO <ls_ext_suppl> .
  CHECK <ls_ext_suppl> IS ASSIGNED.
* ls_cvi_ei_extern-partner-header-object_instance_bpartner = not available here...
  ls_cvi_ei_extern-vendor = <ls_ext_suppl> .
  CASE iv_entity.
    WHEN 'ZSECRET_N'.
      CALL METHOD me->map_bp_zsecret_n_2api
        EXPORTING
          is_data    = is_data
          iv_task    = iv_task
*          iv_fname   = iv_fname
        CHANGING
          cs_suppl   = ls_cvi_ei_extern
*          ct_return  = ct_return
          cv_xchange = cv_xchange.
    WHEN OTHERS.
  ENDCASE.
  IF <ls_ext_suppl> IS ASSIGNED.
    <ls_ext_suppl> = ls_cvi_ei_extern-vendor.
    ASSIGN COMPONENT 'ASSIGNMENT_ID' OF STRUCTURE cs_data_ext TO <ls_ext_as_id>.
    IF sy-subrc = 0.
      <ls_ext_as_id> = <ls_as_id>.
    ENDIF.
  ENDIF.
ENDMETHOD.

MAP_DATA_2STA

METHOD if_mdg_bs_bp_access_handler~map_data_2sta.

  DATA: ls_cvi_ei_extern TYPE cvis_ei_extern,
        lv_as_id         TYPE mdg_bp_assignment_id.

  FIELD-SYMBOLS:
    <lt_mlt_as>    TYPE ANY TABLE,
    <ls_mlt_as>    TYPE any,
    <lt_data>      TYPE mdg_bs_bp_tt_mlt_as_suppl,
    <ls_data>      TYPE mdg_bs_bp_s_mlt_as_suppl,
    <ls_bp_header> TYPE bus_ei_extern,
    <ls_data_ret>  TYPE any,
    <lv_as_id_ret> TYPE any,
    <lv_as_id>     TYPE any.

* special handling for multiple assignments:
* in case a multiple assignment record for standard vendor was simulated (ifcvi_vend_link exist but no entry
* in table MDG_MLT_ASSGNMNT) then only this record is bufferd by customer handler and has to be mapped here, that's why entity 'BP_MLT_AS'
* has to be processed here additionally
*  IF iv_entity = 'BP_MLT_AS'.
*    ASSIGN COMPONENT 'MLT_ASSIGNMENTS' OF STRUCTURE is_data TO <lt_mlt_as>.
*    CALL METHOD me->map_bp_mlt_as_2sta
*      EXPORTING
*        it_mlt_as = <lt_mlt_as>
*      CHANGING
*        ct_data   = ct_data
*        ct_return = ct_return.
*    RETURN.
*  ENDIF.
** handling of all other entities
*  ASSIGN COMPONENT 'PARTNER' OF STRUCTURE is_data TO <ls_bp_header>.
*  ASSIGN COMPONENT 'VENDORS' OF STRUCTURE is_data TO <lt_data>.
*  IF <lt_data> IS ASSIGNED.
*    LOOP AT <lt_data> ASSIGNING <ls_data>.
** build CVI structure for mapping
*      ls_cvi_ei_extern-partner = <ls_bp_header>.
*      ls_cvi_ei_extern-vendor = <ls_data>-vendor.
*      ASSIGN COMPONENT 'ASSIGNMENT_ID' OF STRUCTURE <ls_data> TO <lv_as_id>.
*      IF sy-subrc = 0.
*        lv_as_id = <lv_as_id>.
*      ENDIF.
      CASE iv_entity.
        WHEN 'ZSECRET_N'.
          CALL METHOD me->map_bp_zsecret_n_2sta
            EXPORTING
              is_suppl         = ls_cvi_ei_extern
              iv_assignment_id = lv_as_id
            CHANGING
              ct_data          = ct_data.
*              ct_return        = ct_return.
      ENDCASE.
*    ENDLOOP.
*  ENDIF.
ENDMETHOD.

PREPARE_EI_HEADER_MAP_2API

  METHOD if_mdg_bs_bp_access_handler~prepare_ei_header_map_2api.
    FIELD-SYMBOLS:
      <ls_suppl_ext>  TYPE cvis_ei_extern,
      <bp_suppl_link> TYPE ty_bp_suppl_link.
    DATA:
    ls_suppl_ext TYPE cvis_ei_extern.
    FIELD-SYMBOLS:
      <lv_partner>       TYPE bu_partner,
      <ls_ecc_ext>       TYPE mdg_bs_bp_s_ecc_extern,
      <ls_data_ext_db>   TYPE mdg_bs_bp_s_ecc_extern,
      <ls_vendor_db>     TYPE mdg_bs_bp_s_mlt_as_suppl,
      <lv_kunnr>         TYPE kunnr,
      <ls_ecc_ext_suppl> TYPE mdg_bs_bp_s_mlt_as_suppl,
      <lv_assignment_id> TYPE mdg_bp_assignment_id,
      <ls_ecc_mlt_as>    TYPE mdg_bs_bp_s_mlt_as_mem,
      <ls_ext>           TYPE mdg_bs_bp_s_mlt_as_suppl.
    DATA:
      ls_cust_ext      TYPE cvis_ei_extern,
      ls_ecc_ext       TYPE mdg_bs_bp_s_ecc_extern,
      lr_data          TYPE REF TO data,
      ls_ecc_ext_suppl TYPE mdg_bs_bp_s_mlt_as_suppl,
      ls_ecc_mlt_as    TYPE mdg_bs_bp_s_mlt_as_mem.

    CHECK iv_entity = 'ZSECRET_N'.
* Supplier Switch for EHP6 has to be active
    IF cl_mdg_bs_suppl_switch_check=>mdg_bs_ecc_supplier_switch_02( ) EQ abap_true
    .
      ASSIGN COMPONENT 'BP_HEADER' OF STRUCTURE is_data TO <lv_partner>.
      ASSIGN COMPONENT 'ASSGNM_ID' OF STRUCTURE is_data TO <lv_assignment_id>.
* check whether record with bp number already exists, if not create one
      READ TABLE ct_data_ext
      WITH KEY ('PARTNER-HEADER-OBJECT_INSTANCE-BPARTNER') = <lv_partner>
      ASSIGNING <ls_ecc_ext>.
* should always be provided by BP_Handler
      IF sy-subrc <> 0.
* create BP record
        CLEAR ls_ecc_ext.
        ls_ecc_ext-partner-header-object_instance-bpartner = <lv_partner>.
        READ TABLE gt_ecc_extern_db
        ASSIGNING <ls_data_ext_db>
        WITH KEY partner-header-object_instance-bpartner = <lv_partner>.
        IF sy-subrc = 0.
          ls_ecc_ext-partner-header-object_task = gc_upd.
        ELSE.
          ls_ecc_ext-partner-header-object_task = gc_ins.
        ENDIF.
        INSERT ls_ecc_ext INTO TABLE ct_data_ext ASSIGNING <ls_ecc_ext>.
      ENDIF.

* check if vendor record was already mapped
      READ TABLE <ls_ecc_ext>-vendors
      WITH KEY assignment_id = <lv_assignment_id> ASSIGNING <ls_ecc_ext_suppl>.
* create new supplier entry
      IF sy-subrc <> 0.
        ls_ecc_ext_suppl-assignment_id = <lv_assignment_id>.
* determine LIFNR (may already exist on DB)
        READ TABLE gt_ecc_extern_db
        ASSIGNING <ls_data_ext_db>
        WITH KEY partner-header-object_instance-bpartner = <lv_partner>.
* Partner already exist on DB
        IF sy-subrc = 0.
          READ TABLE <ls_data_ext_db>-vendors ASSIGNING <ls_vendor_db>
          WITH KEY assignment_id = <lv_assignment_id>.
* supplier already exist on DB
          IF sy-subrc = 0.
* fill suplier ID
            ls_ecc_ext_suppl-vendor-header-object_instance-lifnr = <ls_vendor_db>-vendor-header-object_instance-lifnr.
            ls_ecc_ext_suppl-vendor-header-object_task = gc_upd.
          ELSE.
* supplier doesn't exist on DB, must be Insert
            ls_ecc_ext_suppl-vendor-header-object_task = gc_ins.
          ENDIF.
        ENDIF.
        INSERT ls_ecc_ext_suppl INTO TABLE <ls_ecc_ext>-vendors ASSIGNING <ls_ecc_ext_suppl>.
      ENDIF. "create new supplier target record
      GET REFERENCE OF <ls_ecc_ext_suppl> INTO er_data_ext.
    ENDIF.
  ENDMETHOD.

READ_OBJECT_DATA

  METHOD if_mdg_bs_bp_access_handler~read_object_data.
    DATA: lt_supplier   TYPE cvis_ei_extern_t,
          ls_as_vendor  TYPE cvis_ei_extern,
          lt_mlt_as     TYPE mdg_bs_bp_tt_mlt_as,
          lt_mlt_as_old TYPE mdg_bs_bp_tt_mlt_as_mem,
          lt_mlt_as_ret TYPE mdg_bs_bp_tt_mlt_as_mem,
          ls_mlt_as     TYPE mdg_bs_bp_s_mlt_as,
          ls_mlt_as_old TYPE mdg_bs_bp_s_mlt_as_mem,
          ls_mlt_as_db  TYPE mdg_bs_bp_s_mlt_as_target,
          lt_return     TYPE bapiret2_t,
          lv_lifnr      TYPE lifnr.

    FIELD-SYMBOLS:
      <ls_cvis_data_db> TYPE cvis_ei_extern,
      <ls_supplier>     TYPE cvis_ei_extern,
      <ls_as_supplier>  TYPE cvis_ei_extern,
      <ls_mlt_as_db>    TYPE mdg_bs_bp_s_mlt_as_target.

    DATA: lt_ecc_extern_db TYPE mdg_bs_bp_tt_ecc_extern,
          ls_ecc_extern_db TYPE mdg_bs_bp_s_ecc_extern,
          ls_vendor        TYPE mdg_bs_bp_s_mlt_as_suppl,
          lv_kunnr         TYPE kunnr.

    FIELD-SYMBOLS:
      <ls_ecc_extern_db> TYPE mdg_bs_bp_s_ecc_extern,
      <ls_mlt_as_old>    TYPE mdg_bs_bp_s_mlt_as_mem,
      <ls_idlist>        TYPE bus_ei_instance.

    DATA: lt_zin_t_secret_num TYPE TABLE OF zin_t_secret_num,
          ls_zin_t_secret_num LIKE LINE OF lt_zin_t_secret_num,
          ls_secret_number    TYPE zin_s_secret_number.

    FIELD-SYMBOLS: <ls_extern_db>     LIKE LINE OF gt_ecc_extern_db,
                   <ls_vendor>        TYPE mdg_bs_bp_s_mlt_as_suppl,
                   <ls_company>       TYPE LINE OF vmds_ei_company_t,
                   <ls_secret_number> TYPE zin_s_secret_number.

** Part for Customer-own tables
    LOOP AT gt_ecc_extern_db ASSIGNING <ls_extern_db>.
      LOOP AT <ls_extern_db>-vendors ASSIGNING <ls_vendor>.
        LOOP AT <ls_vendor>-vendor-company_data-company ASSIGNING <ls_company>.
          CLEAR: lt_zin_t_secret_num,
          ls_zin_t_secret_num.
          SELECT * FROM zin_t_secret_num APPENDING TABLE lt_zin_t_secret_num
                                                          WHERE bukrs = <ls_company>-data_key-bukrs
                                                            AND lifnr = <ls_vendor>-vendor-header-object_instance-lifnr.
          IF NOT lt_zin_t_secret_num IS INITIAL.
            <ls_company>-zsecret_number-zcurrent_state = 'X'.
          ENDIF.

          LOOP AT lt_zin_t_secret_num INTO ls_zin_t_secret_num.
*            APPEND INITIAL LINE TO <ls_company>-zsecret_number-zsecret_number ASSIGNING <ls_secret_number>.
*            <ls_secret_number>-data_key-secret_number = ls_zin_t_secret_num-secret_number.
*            <ls_secret_number>-data-sn_comment = ls_zin_t_secret_num-sn_comment.
            APPEND VALUE #( data_key-secret_number = ls_zin_t_secret_num-secret_number
                           data-sn_comment = ls_zin_t_secret_num-sn_comment ) TO <ls_company>-zsecret_number-zsecret_number.
*            APPEND <ls_secret_number> TO <ls_company>-zsecret_number-zsecret_number.
          ENDLOOP.
        ENDLOOP.
      ENDLOOP.
    ENDLOOP.
  ENDMETHOD.

SAVE_ADDITIONAL_OBJECT_DATA

  METHOD if_mdg_bs_bp_access_handler~save_additional_object_data.
    FIELD-SYMBOLS:
      <lt_data_new> TYPE mdg_bs_bp_s_ecc_extern,
      <lt_data_db>  TYPE mdg_bs_bp_s_ecc_extern,
      <ls_partner>  TYPE bus_ei_extern,
      <ls_data>     TYPE zin_t_secret_num,
      <ls_data_db>  TYPE zin_t_secret_num,
      <ls_company>  TYPE vmds_ei_company,
      <ls_secret>   TYPE zin_s_secret_number,
      <lv_vendor>   TYPE mdg_bs_bp_s_mlt_as_suppl,
      <ls_data_ext> TYPE mdg_bs_bp_s_ecc_extern.

    DATA: lt_current_secret  TYPE TABLE OF zin_t_secret_num,
          lt_database_secret TYPE TABLE OF zin_t_secret_num,
          ls_current_secret  TYPE zin_t_secret_num,
          ls_database_secret TYPE zin_t_secret_num,
          lt_ins             TYPE TABLE OF zin_t_secret_num,
          lt_upd             TYPE TABLE OF zin_t_secret_num,
          lt_del             TYPE TABLE OF zin_t_secret_num,
          ls_data            TYPE zin_t_secret_num,
          lr_ecc_extern_db   TYPE REF TO data.

* Note: IS_DATA_DB does not contain DB state of customer specific data, use GT_ECC_EXTERN_DB forcurrent db state of handler
    ASSIGN is_data TO <lt_data_new>.
    ASSIGN COMPONENT 'PARTNER' OF STRUCTURE is_data TO <ls_partner>.
    CHECK <ls_partner> IS ASSIGNED.
    READ TABLE gt_ecc_extern_db
    ASSIGNING <ls_data_ext>
    WITH KEY partner-header-object_instance-bpartner = <ls_partner>-header-object_instance-bpartner.
    IF <ls_data_ext> IS ASSIGNED.
      ASSIGN <ls_data_ext> TO <lt_data_db>.
    ELSE.
      CREATE DATA lr_ecc_extern_db TYPE mdg_bs_bp_s_ecc_extern.
      ASSIGN lr_ecc_extern_db->* TO <lt_data_db>.
    ENDIF.
* current data
    LOOP AT <lt_data_new>-vendors ASSIGNING <lv_vendor>.
      LOOP AT <lv_vendor>-vendor-company_data-company ASSIGNING <ls_company>.
        LOOP AT <ls_company>-zsecret_number-zsecret_number ASSIGNING <ls_secret>.
          CLEAR: ls_data.
          ASSERT NOT <lv_vendor>-vendor-header-object_instance-lifnr IS INITIAL.
          ls_data-lifnr = <lv_vendor>-vendor-header-object_instance-lifnr.
          ls_data-bukrs = <ls_company>-data_key-bukrs.
          ls_data-secret_number = <ls_secret>-data_key-secret_number.
          ls_data-sn_comment = <ls_secret>-data-sn_comment.
          CASE <ls_secret>-task.
            WHEN gc_del.
              APPEND ls_data TO lt_del.
            WHEN gc_ins.
              APPEND ls_data TO lt_ins.
            WHEN gc_upd.
              APPEND ls_data TO lt_upd.
          ENDCASE.
        ENDLOOP.
      ENDLOOP.
    ENDLOOP.

* database data
    LOOP AT <lt_data_db>-vendors ASSIGNING <lv_vendor>.
      LOOP AT <lv_vendor>-vendor-company_data-company ASSIGNING <ls_company>.
        LOOP AT <ls_company>-zsecret_number-zsecret_number ASSIGNING <ls_secret>.
          ASSERT NOT <lv_vendor>-vendor-header-object_instance-lifnr IS INITIAL.
          ls_database_secret-lifnr = <lv_vendor>-vendor-header-object_instance-lifnr.
          ls_database_secret-bukrs = <ls_company>-data_key-bukrs.
          ls_database_secret-secret_number = <ls_secret>-data_key-secret_number.
          ls_database_secret-sn_comment = <ls_secret>-data-sn_comment.
          APPEND ls_database_secret TO lt_database_secret.
        ENDLOOP.
      ENDLOOP.
    ENDLOOP.

    lt_current_secret = lt_database_secret.
* merge
* Deletes
    LOOP AT lt_del ASSIGNING <ls_data>.
      READ TABLE lt_current_secret WITH KEY bukrs = <ls_data>-bukrs
                                            lifnr = <ls_data>-lifnr
                                            secret_number = <ls_data>-secret_number
                                            ASSIGNING <ls_data_db>.
      IF sy-subrc = 0.
* delete record in target table
        DELETE lt_current_secret INDEX sy-tabix.
      ELSE.
* record doesn't exist on DB -> must be a new one, keep data to be checked consistent
        READ TABLE lt_ins WITH KEY bukrs = <ls_data>-bukrs
                                   lifnr = <ls_data>-lifnr
                                   secret_number = <ls_data>-secret_number ASSIGNING <ls_data_db>.
        IF sy-subrc = 0.
          DELETE lt_current_secret INDEX sy-tabix.
        ENDIF.
      ENDIF.
    ENDLOOP.

* Inserts
    LOOP AT lt_ins ASSIGNING <ls_data>.
      READ TABLE lt_current_secret WITH KEY bukrs = <ls_data>-bukrs
                                            lifnr = <ls_data>-lifnr
                                            secret_number = <ls_data>-secret_number
      ASSIGNING <ls_data_db>.
* insert record into target table
      IF sy-subrc NE 0.
        INSERT <ls_data> INTO TABLE lt_current_secret.
      ENDIF.
    ENDLOOP.

* Updates
    LOOP AT lt_upd ASSIGNING <ls_data>.
      READ TABLE lt_current_secret WITH KEY bukrs = <ls_data>-bukrs
                                            lifnr = <ls_data>-lifnr
                                            secret_number = <ls_data>-secret_number
                                            ASSIGNING <ls_data_db>.
* insert record into target table
      IF sy-subrc = 0.
        <ls_data_db> = <ls_data>.
      ENDIF.
    ENDLOOP.

    CALL FUNCTION 'ZIN_FM_SECRET_NUMBER_UPDATES' IN UPDATE TASK
      TABLES
        x_secret_numbers = lt_current_secret
        y_secret_numbers = lt_database_secret.

  ENDMETHOD.

SORT_ENTITIES

  METHOD if_mdg_bs_bp_access_handler~sort_entities.
    DATA: lt_entity TYPE TABLE OF ty_usmd_entity,
          lv_entity TYPE ty_usmd_entity.

    lt_entity = it_entities_all.

    READ TABLE lt_entity WITH KEY entity = 'ZSECRET_N' INTO lv_entity.
    IF sy-subrc = 0.
      APPEND lv_entity TO ct_entities.
    ENDIF.

  ENDMETHOD.

Note: You can customize code as per your requirement.

Extend Genil Model

Open t-code GENIL_MODEL_BROWSER.
Create enhancement

METHOD transform_to_entity_key.

*** This method transforms a GenIL object ID into its entity key.
*** It requires the correct key structure in the chancing parameter.
    DATA:
      lr_genil_key TYPE REF TO data,
      lv_structure TYPE string.

    FIELD-SYMBOLS:
      <ls_genil_key> TYPE key,
      <lv_bp_id>     TYPE any,
      <lv_bp_guid>   TYPE any.
* limit handling to supplier objects
    CASE iv_object_name.
      WHEN 'ZBS_SP_SECRET_NUMBERS'.
* get GenIL key
        TRY.
            lv_structure = me->object_model->get_key_struct_name( iv_object_name = iv_object_name ).
          CATCH cx_crm_unsupported_object.
            RETURN
            .ENDTRY.
        CREATE DATA lr_genil_key TYPE (lv_structure).
        ASSIGN lr_genil_key->* TO <ls_genil_key>.
        me->transform_to_object_key(
        EXPORTING
        iv_object_name = iv_object_name
        iv_object_id = iv_object_id
        IMPORTING
        es_object_key = <ls_genil_key> ).
* map to entity key
        me->mo_typecasting->map(
        EXPORTING
        is_source_structure = <ls_genil_key>
        CHANGING
        cs_target_structure = cs_entity_key ).
* BP ID requires special logic
        ASSIGN COMPONENT 'BP_HEADER' OF STRUCTURE cs_entity_key TO <lv_bp_id>.
        ASSIGN COMPONENT 'BP_GUID' OF STRUCTURE <ls_genil_key> TO <lv_bp_guid>.
        CHECK <lv_bp_id> IS ASSIGNED AND <lv_bp_guid> IS ASSIGNED.
        <lv_bp_id> = me->get_bp_id( iv_bp_guid = <lv_bp_guid> ).
      WHEN OTHERS.
* call parent

        CALL METHOD super->transform_to_entity_key
          EXPORTING
            iv_object_name = iv_object_name
            iv_object_id   = iv_object_id
          CHANGING
            cs_entity_key  = cs_entity_key.
       ENDCASE.
      ENDMETHOD.

  METHOD if_genil_appl_dyn_meta_info~is_child_create_allowed.
*** This method controls if the creation of a supplier dependend object is allowed or not
* delegate to parent first
    super->if_genil_appl_dyn_meta_info~is_child_create_allowed(
      EXPORTING
        iv_relation_name     = iv_relation_name                 " Relation Name
        iv_relation_filter   = iv_relation_filter                 " Relation Filter Interface
        iv_child_name        = iv_child_name                 " External Name of Object
      CHANGING
        cv_parent_and_result = cv_parent_and_result                 " Object Instance with Boolean Result
    ).

    CASE iv_child_name.

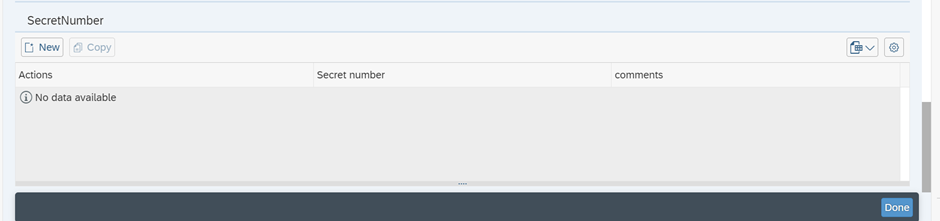

      WHEN 'ZBS_SP_SECRET_NUMBERS'.
        cv_parent_and_result-success = abap_true. "It's always allowed
      WHEN OTHERS.

    ENDCASE.
  ENDMETHOD.
